D106E Ultrasonic Flow Indicator for Pharmacy

PRODUCTS > D106E Ultrasonic Flow Indicator for Pharmacy
    • 1
    • 2
    • 3

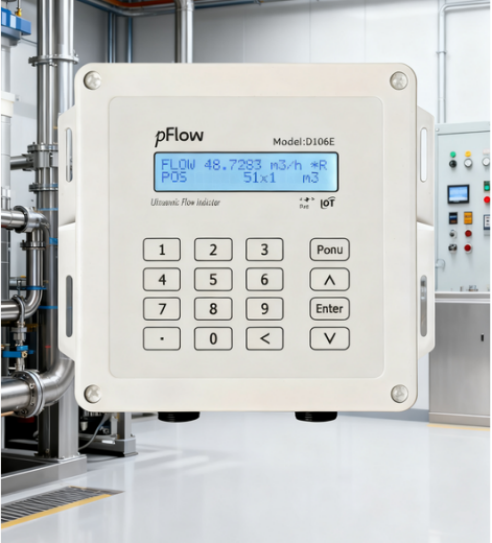

D106E Ultrasonic Flow Indicator for Pharmacy

Product Details
Brand: pFlow
Model : D106E
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash


Power supply: POE Network cable power supply               Measuring Medium: Water

Pipe size: 1ʺ ~ 24ʺ ( 25mm ~ 600mm )                        Flow range: 0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s )

PRODUCT INTRODUCTION



D106E Ultrasonic Flow Indicator for Pharmacy



The D106E Ultrasonic Flow Indicator is ideal for pharmaceutical applications requiring precise, non-invasive flow measurement of water or purified liquids. Its clamp-on design ensures no contamination or pressure drop, meeting hygiene standards. With high accuracy and digital connectivity, it supports process validation, water system monitoring, and compliance with GMP guidelines.


SPECIFICATIONS

Performance specifications

Flow range

0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ).

Pipe Size

1ʺ ~ 24ʺ ( 25mm ~ 600mm ).

Fluid

Water.

Pipe Material

Carbon steel, Stainless steel, PVC, Copper.

Function specifications

Support Protocols

HTTP、MQTT Protocol

Power supply

POE Network cable power supply

Keyboard

Touch Keys*16

Display

20×2 lattice alphanumeric, back lit LCD.

Temperature

Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ );

Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).

Humidity

Up to 99% RH, non-condensing.

Physical specifications

Transmitter

Engineering Plastic (ABS), IP Rating IP65

Transducer

Sealed design, protection class IP68

Transducer Cable

Standard cable length: 16 ft (5m).

Weight

Transmitter: approximately 0.6kg;

Transducer: approximately 0.5kg.

Body Parameters

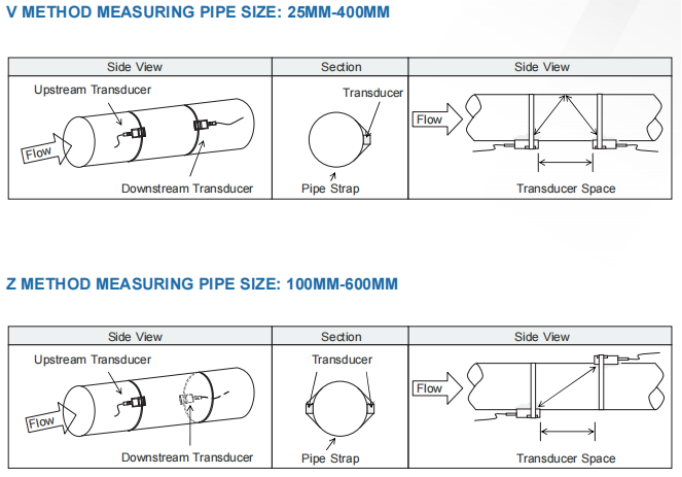

Installation


APPLICATIONS

 Data center HVAC Cooling Systems

 Agriculture and irrigation systems

 Water and wastewater management

 HVAC (Heating, Ventilation, and Air Conditioning) systems

 Process industries (chemical, pharmaceutical, food and beverage)

 Energy management and environmental monitoring

 Research and development

 Facilities management

 Industrial maintenance and troubleshooting



Application cases




CERTIFICATE



ABOUT SHIPPING


ABOUT US

1. Gentos Measurement & Control Co, Ltd. was established in 1993.

2. We focus on different types of ultrasonic flow meters almost 30 years.

3. We have our own factory to make exquisite appearance & optimal products.

4. We have 10 to 20 engineering employers to be working on research & development.

5. All our products are designed and manufactured by ourselves.

6. Each department works together to provide best service for our customers as well.



FAQ:

Q1: Do you have stock?

A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders



Q2: How to ensure the quality of your products, will the finished product be inspected?

A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.



Q3: How long is your delivery time?

A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).



Q4: Can you give us a discount?

A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.



Q5: Are you a FACTORY or TRADING COMPANY?

A5: Yes,we are a manufacturer with designing, manufacturing, marketing and exporting.
